| Brand Name: | HONGQI |
| Model Number: | HQ047 |
| MOQ: | negotiable |
| Price: | negotiable |
| Delivery Time: | negotiable |
| Payment Terms: | L/C,D/A,T/T |
Flexible Printed Circuit Assembly Double Layer Circuit Board Factory Direct Sales
Product description:
Product model:HQ047

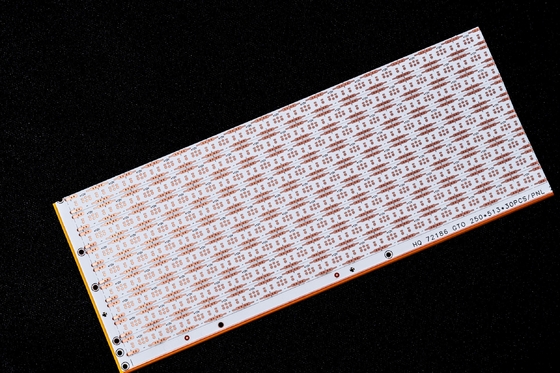

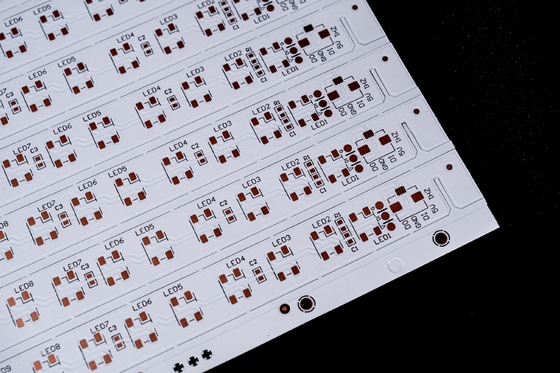

Product Name:LED light strip FPC

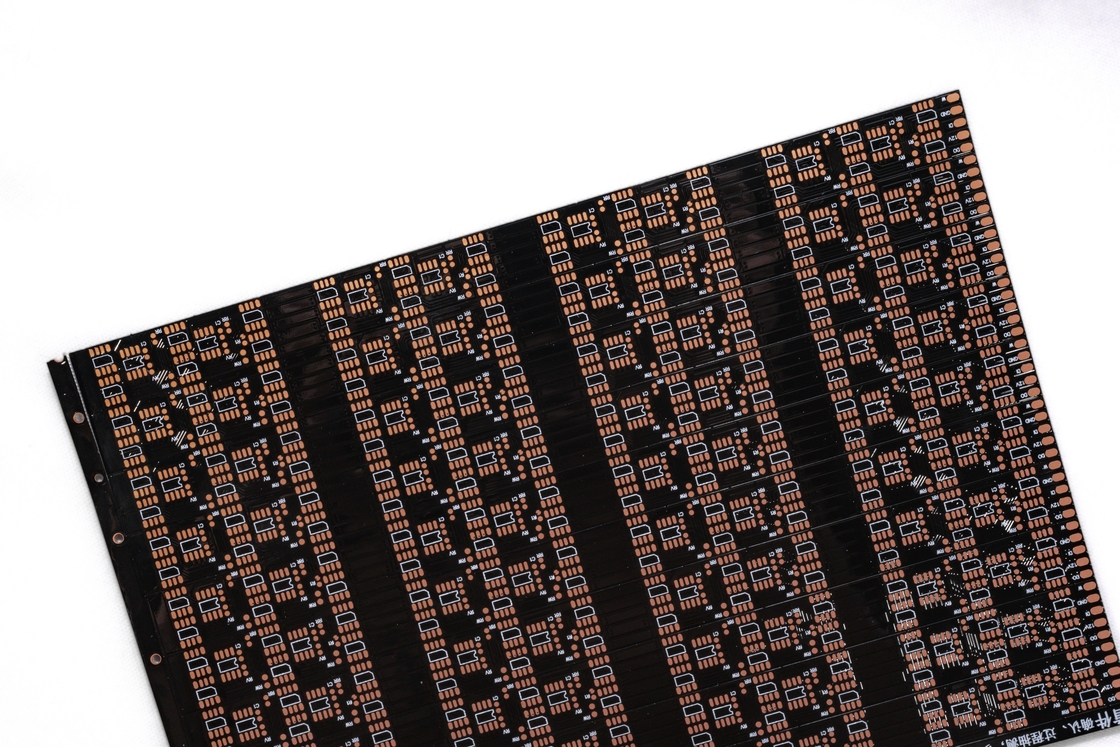

Product features: Double layer circuit board, double-sided black film, black text, surface OSP antioxidant
Product specifications:
1. We are the Flexible Pcb and FPC Manufacturer,according to your needs to customize different material thickness and process requirements LED light strip FPC,Precision FPC,Colorful LED strip FPC and other LED flexible circuit board with single ,double-sided and Multi-layer.
2. Good flexibility and resistance to bending
The factory has a professional bending tester, each batch of materials through
Tens of thousands of bending tests before mass production to ensure product quality.
FPC design parameters
Main technical parameters:
1.About Dimensions:
Precision FPC: The maximum size is240X500mm (limit250X500mm), and there is no limit to the minimum size. Roll material board: maximum width 240. maximum length 100 meters.
2. Number of layers on the board
3. Solder mask color
The solder mask colors of FPC are yellow, black, and white. Suggest using yellow,Yellow film is suitable for the vast majority of products,such as various cable products. Black film is commonly used in high-end or light absorbing products,such as cars, mobile phones, LED displays, etc. White film has an additional layer of white coating compared to yellow film, and is often used in products that require reflection,such as lighting fixtures, LED displays, medical beauty products, etc.
4. Copper foil thickness
5. Minimum line width/line spacing
Under normal circumstances, the smaller the difficulty, the higher the defect rate, and it is generally recommended to use at least 3mil.
Service process
1.Consulting
16 years focus on FPC flexible circuit board design and R & D manufacturing, to provide customers with personalized solutions, design drawings, development of new products and provide related technical support.
2.Offer
Sample or batch quotation of the same type of technology, materials, advanced technology, price concessions, greatly for customers to save costs.
3.Profession
Our company has Germany, Japan, Taiwan and other regions of advanced equipment and production technology, professional production, scale. Our factory covers an area of nearly 20,000 square meters, with more than 800 employees and 50 senior technical backbone personnel.
4.Design
Provide solutions to customers to finalize a number of international system certification, can provide substrate production, wiring, principle design, mold, patch, plug-in and open steel mesh one-stop service, 16 years of professional and technical level precipitation, worthy of your choice and trust.
5.Sample Making
We specialize in FPC sample making and customization services, the company has an expedited production line, such as: flexible circuit board dual panel samples can be completed within 5-7 days.
Certificates and Honors
Please note:
All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded every year and We specialize in all kinds of FPC sample making and customization services, If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, substrate production, wiring, principle design, mold, patch, plug-in and others one-stop service.
please contact us on line or E-mail to us, and we will provide you with one-on-one service from our professional sales team.Thank you for your time.
|
